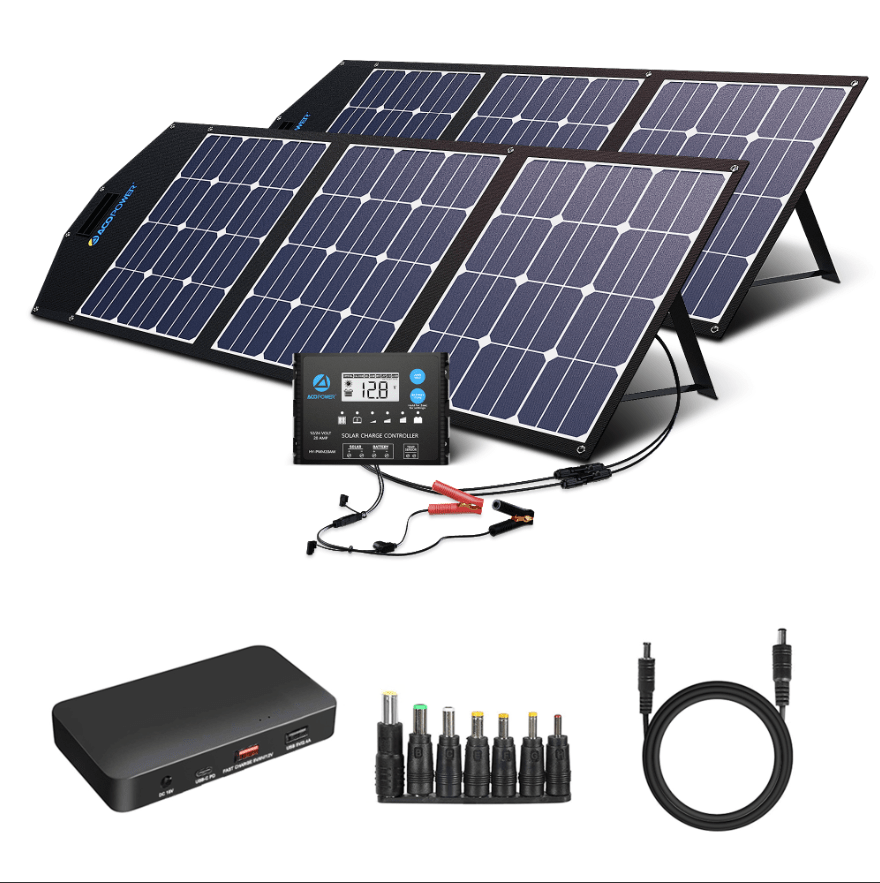

ACOPower 240W Foldable Solar Panel with ProteusX 20A Charge Controller
ACOPower 240W Foldable Solar Panel with ProteusX 20A Charge Controller
ACOPower 240W Foldable Solar Panel Suitcase features a extra portable design with durable quality for outdoor activities.

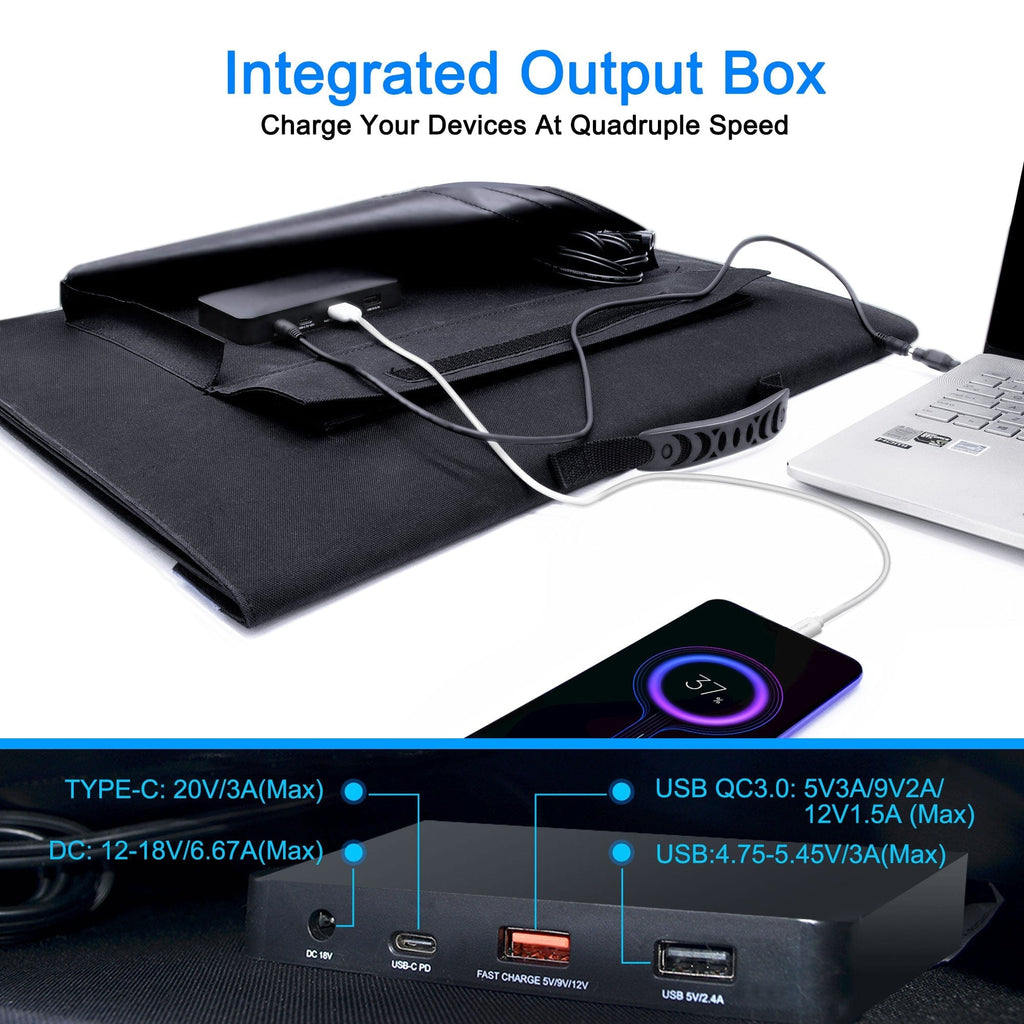

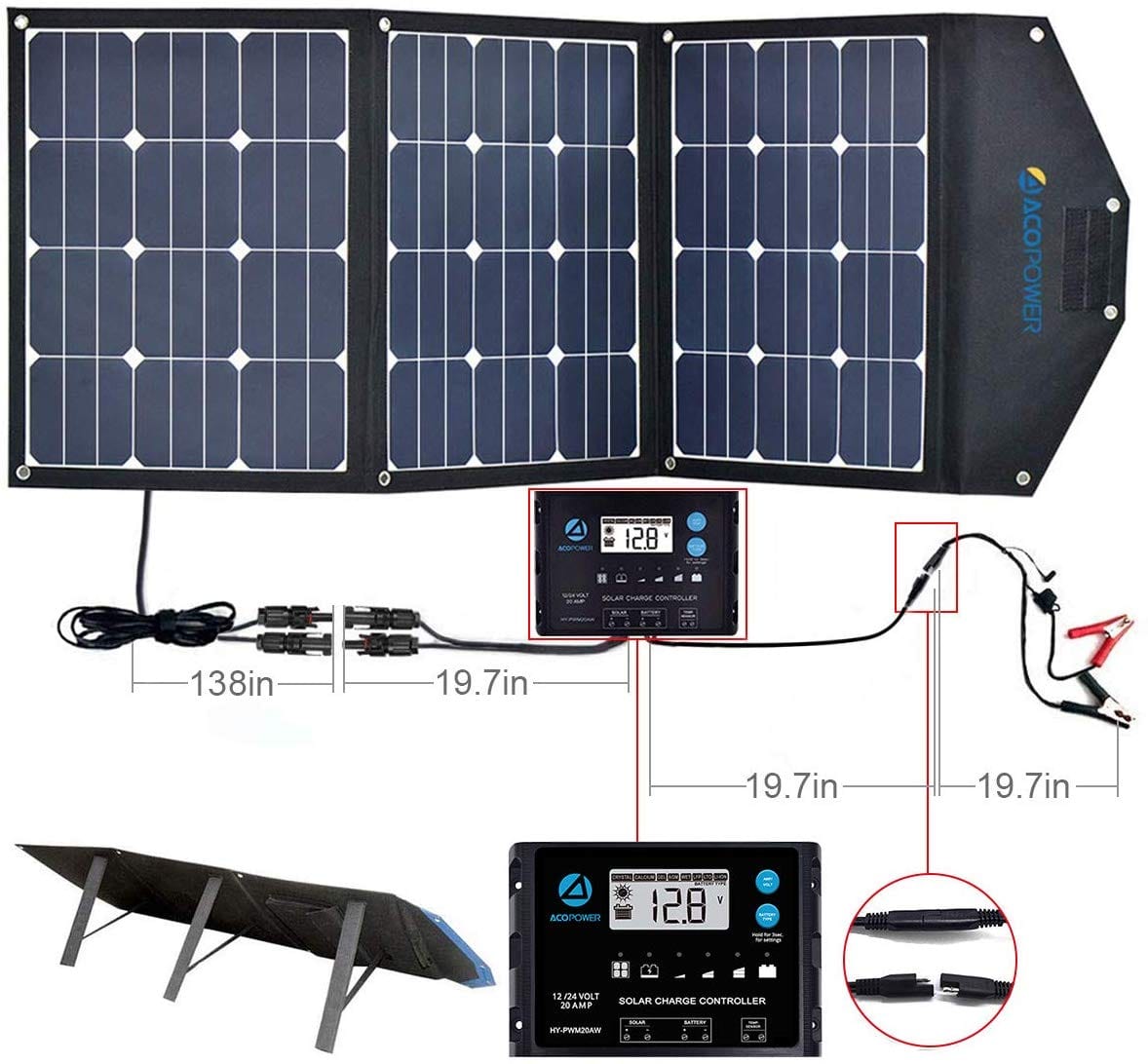

In the pocket of the suitcase, it has a 20A LCD waterproof charge controller, Alligator clamps for battery charging, a USB QC 3.0 port, a USB-C(Type C) port, a DC to DC adapter, different size of connectors,two pairs of MC-4 Connectors where the charge controller could be removed, or an extension cable could be insert, and SAE to SAE adapter where it can be connected to the RV directly.
Fabric and cell surface is waterproof for outdoor. The pre-installed wires and stands allows an easy setting-up in 2 mins.
Product Specification:

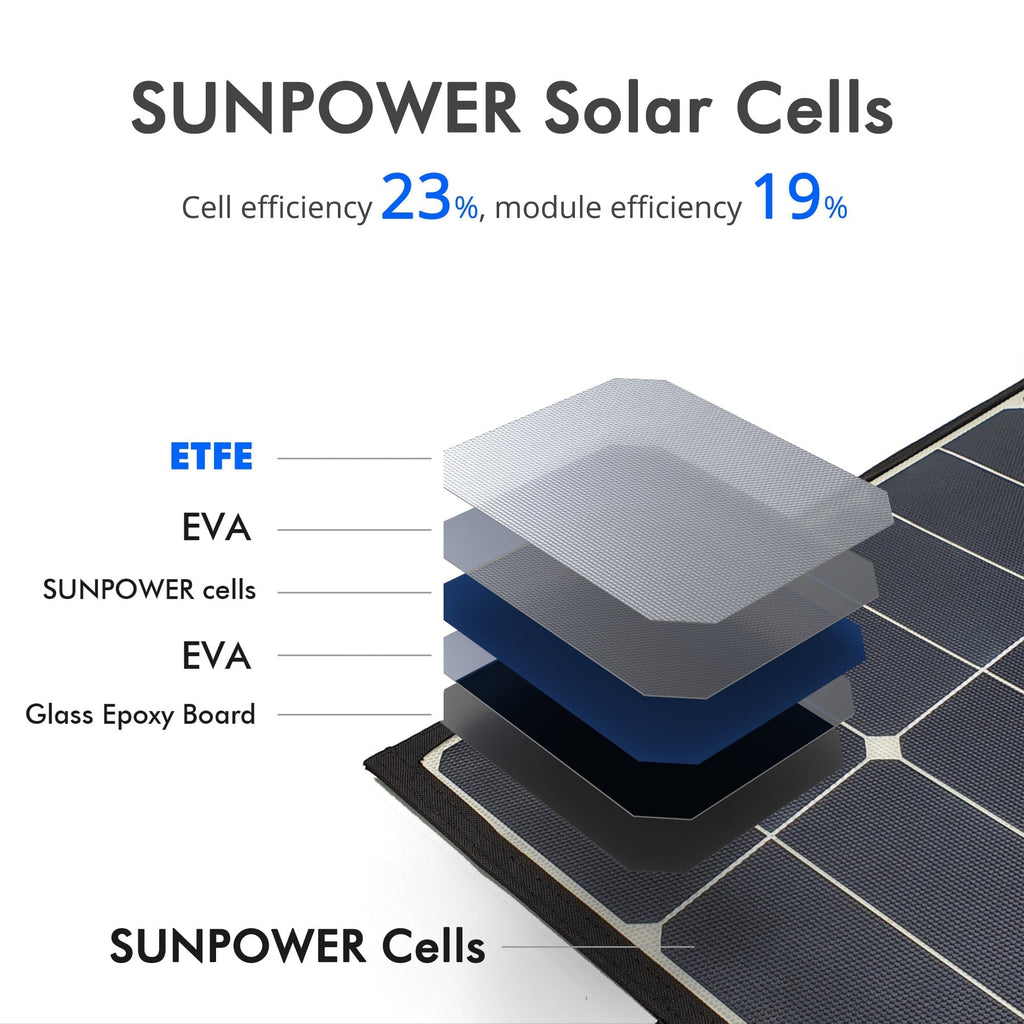

(Made of SunPower Solar Cell)
Voltage at nominal power [V] Vmp 18V
Current at nominal power [A] Imp 2 * 5.97A
Open-circuit voltage [V] Voc 24.6V
Short-circuit current [A] Isc 2 * 6.32A
20A CHARGE CONTROLLER
| Nominal system voltage: 12V/24V DC | Rated charge/discharge current: 20A |
| Max. PV open circuit voltage: 50V | Grounding: Common Negative |
| Battery Start Charging Voltage: 3V | Temperature Compensation Coefficient: -24mV/°C |
| Operating Temperature: -40°F to 140°F | Storage Temperature: -40°F to 185°F |
| Terminals: Up to 10 AWG | Enclosure: IP65 |
| Dimensions: 5.59x 3.7x 1.06 inches | Weight: 1.1lbs |
WARRANTY INFORMATION |
| Panels: The solar panel itself comes with an 18-months workmanship warranty and a 25-year 85% output warranty. |
| Accessories: 1-year material warranty |

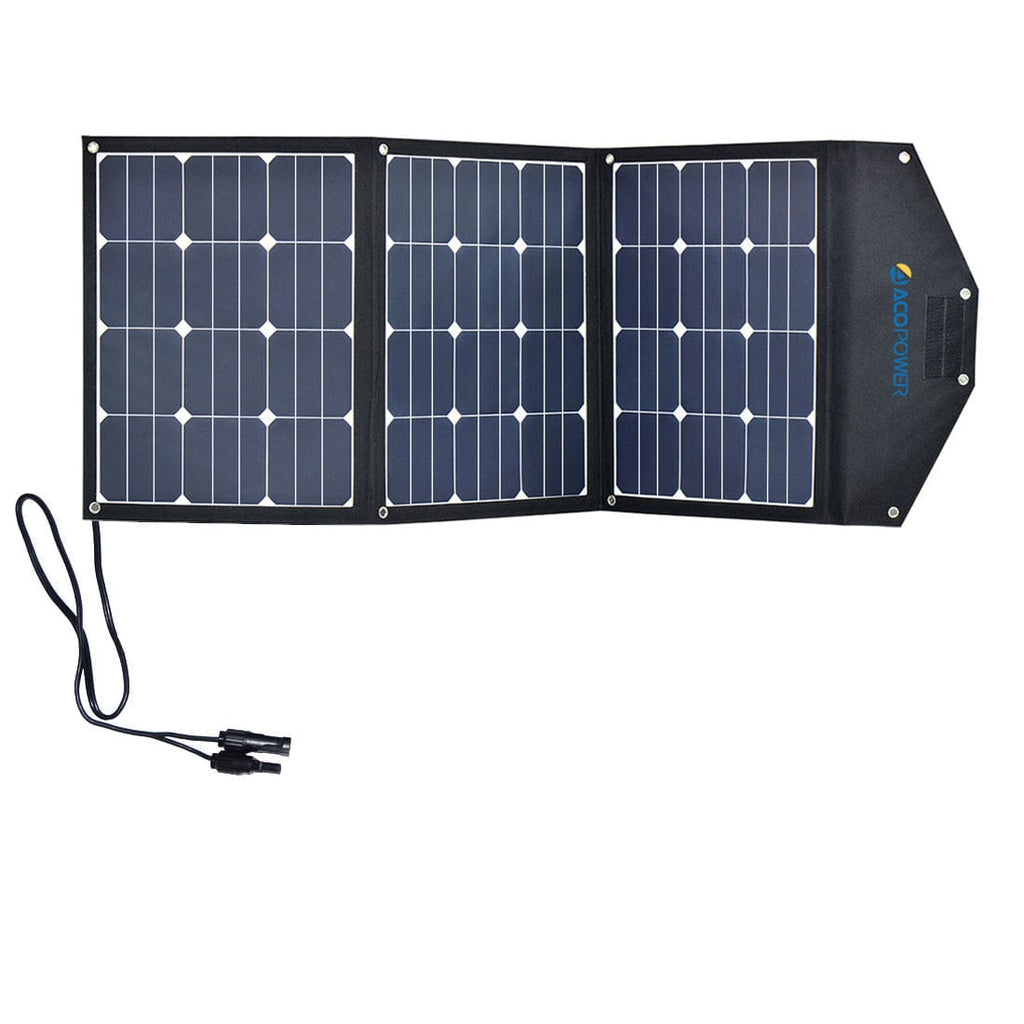

ACOPOWER 120W FOLDABLE SOLAR PANEL X 2PCS
|
Module Type: 3×40W |
Maximum Power: 120W |
| Open-Circuit Voltage (Voc): 24.64V | Maximum Operating Voltage (Vmp): 20.88V |
| Short-Circuit Current (Isc): 6.32A | Maximum Operating Current (Imp): 5.97A |
| Folded size: 22×17.3×0.8 in / 560×440×20mm | Unfolded size: 56.7×22×0.2 in / 1440×560×4mm |
| Weight: 8.4lbs / 3.8kg |
|
