ACOPower 800 Watt Monocrystalline Solar RV Kit w/60A MPPT Charge Controller (4x200W 60A Kit)

ACOPower 800 Watt Monocrystalline Solar RV Kit w/60A MPPT Charge Controller (4x200W 60A Kit)

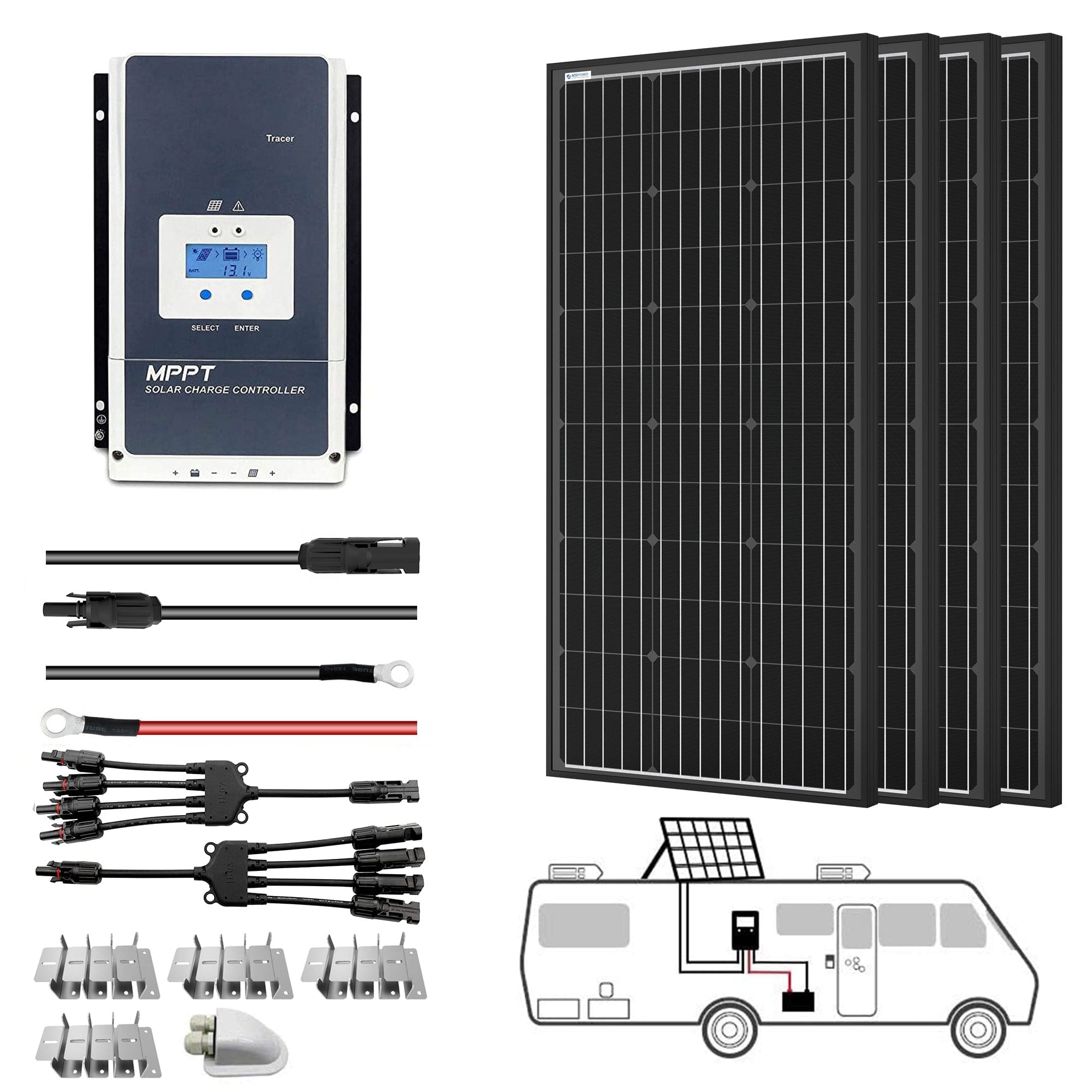

• • Complete kit includes: (1)4PCS 200 Watt 12 Volt Mono Silver Frame Solar Panel (2)60A MPPT Charge Controller(3)30ft 10AWG Solar Adaptor Kit (4) 8ft 8AWG Tray Cable(5) Cable Entry Housing(6)4 sets z-brackets
  • Easy installation with pre-drilled hole; each solar panel comes with 35 inches 12AWG cable with PV male/female quick connectors; all you need is a cable to your battery and fuse
  • Hight Efficiency: 4 PCS Monocrystalline solar cell efficiency: 14.35%; 60A MPPT charge controller peak efficiency: 99.5%
  • MPPT Technology: Solar Charge Controller has user adjustable settings! LCD Screen shows, voltage, solar panel status, battery state of charge, and DC load draw. See Image in photo gallery for all LCD Screen readouts. Compatible with lead acid, AGM, gel, and lithium batteries
  • Green Solar System: : Designed for RVs, cabins, homes, boats, back-up and remote power use. The two solar panels can be wired in parallel for 12V battery charging or in series for 24V battery charging
  • 25-year transferable power output warranty on panels and 1-year warranty on rest of the kit components

  200-watt monocrystalline solar panel


  •  Panel leads (pair): 3 feet each
  •  IP65 rated waterproof junction box
  •  IP67 rated waterproof PV connectors
  •  Bypass diodes built-in the junction box


  Specifications


  • Peak Power (Pmax):200W
  • Peak Circuit Voltage(Voc):24.3V
  • Max Power Voltage(Vmp):20.4V
  • Short Circuit Current(Isc): 10.2A
  • Max Power Current(Imp):9.8A
  • Wind resistance:2400pa
  • Weight: 26.5 lb/12kg
  • Dimension: 54.72 x 27.56x 1.3 Inch
  • Application Class: Class A


  60A MPPT Charge Controller


  • Nominal system voltage:12v/24v/36v/48v DC auto work
  • Rated charge current :60 Amp
  • Max. PV open circuit voltage:150V/138V (At 25℃)
  • Battery type :Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries
  • Common negative grounding design
  • MPP voltage range:V(BAT)+2V～108V
  • Max. PV input power: 750W/12V, 1500W/24V, 2250W/36V ,3000W/48V
  • Enclosure: IP30

  Package List
  1PC 12v 200W Solar Panel
  1PC MPPT 30A Charge Controller
  1PC 8FT 8AWG Tray Cable
  1PC 30ft 12AWG PV Cable
  1PC Cable Entry Housing
  1 Pair 1Y4 Branch Connector:1 male to 4 female(M/FFFF) and 1 female to 4 male(F/MMMM).
