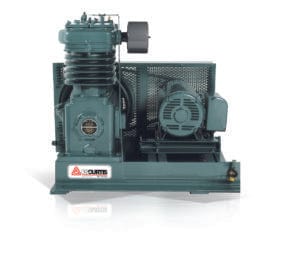

FS-Curtis Series ML15 Base Mounted Electric Air Compressor 15HP
FS-Curtis Series ML15 Base Mounted Electric Air Compressor 15HP
5-30HP MASTERLINE PRESSURE LUBRICATED COMPRESSOR
ML Series compressors aren’t just durable. They’re also versatile, with a wide range of available configurations. No matter what your application, there’s a Masterline compressor just right for your needs.
5-30HP MASTERLINE PRESSURE LUBRICATED COMPRESSOR
ML Series compressors aren’t just durable. They’re also versatile, with a wide range of available configurations. No matter what your application, there’s a Masterline compressor just right for your needs.
CENTRO-RING PRESSURE LUBRICATION
Patented FS-Curtis design.
- Proprietary technology is an FS-Curtis exclusive
- Supplies pressurized oil internally to all bearings and critical wear surfaces through the rifle-drilled crankshaft and connecting rods
- Helps ensure maximum uptime and increase service life
100% CAST-IRON CYLINDER HEADS, CONNECTING RODS, AND CRANKSHAFT
All cast-iron where it counts for longer life with less maintenance.
- Some pumps claim 100% cast-iron yet still have aluminum cylinders, cylinder heads, connecting rods and crankshafts – not FS-Curtis
- Ductile cast-iron crankshaft and connecting rods are stronger, more corrosion-resistant and less likely to break
- Slow-turning pump increases pump life
- Rugged parts and construction for industrial performance
QUALITY COMPONENTS
Built to be durable and reliable.
- Industry-leading stainless-steel valve assemblies for increased airflow and reliability
- Oversized tapered main roller bearings to ensure long life
- Premium finned intercooler maximizes heat dissipation
- Metal intake filter/silencer is superior to plastic
- Heavy-duty stamped-steel belt guard
- Suction valve head unloaders for continuous running air compressors
STANDARD FEATURES
- Centro-Ring pressure lubrication
- 100% casting-iron cylinders, cylinder heads, connecting rods, and crankshaft
- Dynamically balanced flywheel
- Factory oil filled
- Automatic Start-Stop control
- Heavy gauge metal base
- Dial read-out pressure gauge
- ASME approved safety relief valve
- OSHA approved totally enclosed belt guard
- Factory-filled RC-1000 lubricants
- NEMA-1 control panel
- Premium Efficiency Motors (3-phase only)
- Magnetic motor starters (60Hz)
- Metal intake filter-silencers
- Slow V-belt drive
- UL approved pressure switch
- ASME approved discharge air service valve
- Dual Control Optional on ML5 & above with NEMA 1 HOA Switch
- Pressure switch shipped loose
Weight: 1,055.0
