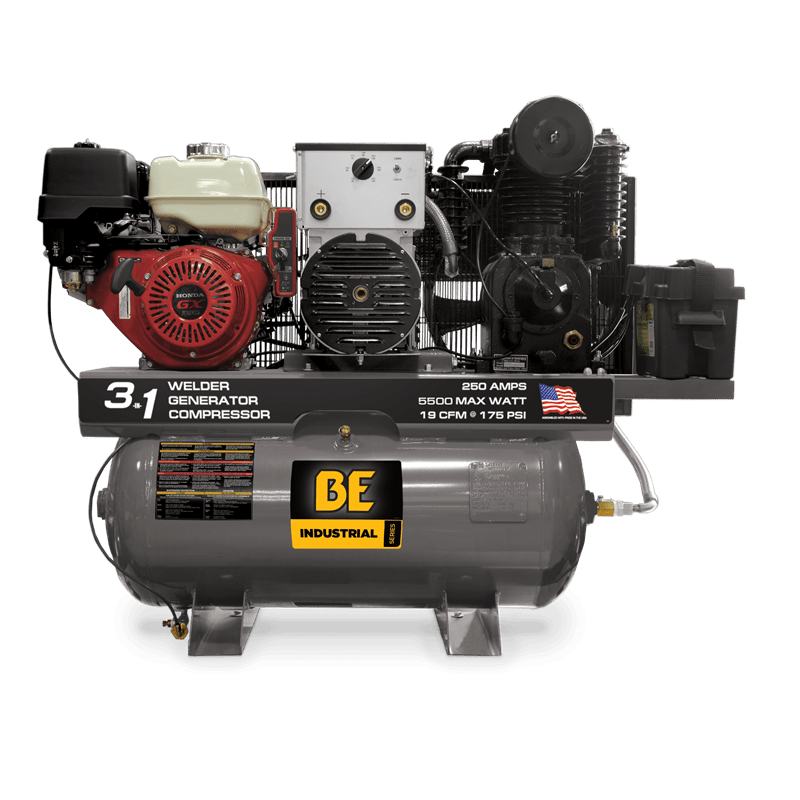

BE 3 in1 Electric Start with Battery Compressor/Generator/Welder AC1330HB3000W
BE 3 in1 Compressor/Generator/Welder AC1330HB3000W
Electric start system with battery included. Belt drive system keeps the pump RPM low and running cooler to extend its performance and life span. Heavy-duty, two-stage splash lubricated pump with cast iron cylinders, accessible valves, and bearings on both end of the crank shaft to maximize longevity. Centrifugal and head unloading features further improves pump pumps cooling and life span. Generator is powered by the Honda engine and can be used at the same time as the compressor. Stick Welder is also powered by the Honda engine and gives ultimate versatility for field repairs for service trucks (welding accessories not included). Pilot unloader valve is an USA Conrader set to cut in at 140 PSI and cut out at 175 PSI. 30-gallon truck mount tank with oversized brackets for stability. Removable saddle so the user is able to separate the engine/pump from the tank for specialized
• Heavy Duty Two Stage Solid Cast Iron Pump • Disk & Spring Valves • Bearings on both ends of the Crankshaft • Centrifugal Unloader • Needle Bearings & inserts on rods • Industrial Grade Gas Engine • Asme tested Powder Coated Steel Tank • Access to Compressor Valves without Compressor Head Removal • Pilot Valve Continuous Operation • Fully enclosed Belt Guard • Full Saddle Mounting Feet Instead of Pegged Mounting Feet • Alternator on driven engine • Belt Guard after cooler
- Part Number: AC1330HB3000W
- Displacement: 389cc Honda GX390
- Generator: 5500W
- Gallon: 30
- CFM @ 175PSI: 19
- Outlets: 110V/220V
- AMPS: 41A @ 120V
- 20A @ 240V
- Stage: Two Stage
- Weight: 585 lbs
- Dimensions (in): 48L x 31W x 58H
- Units Per Pallet: 1
