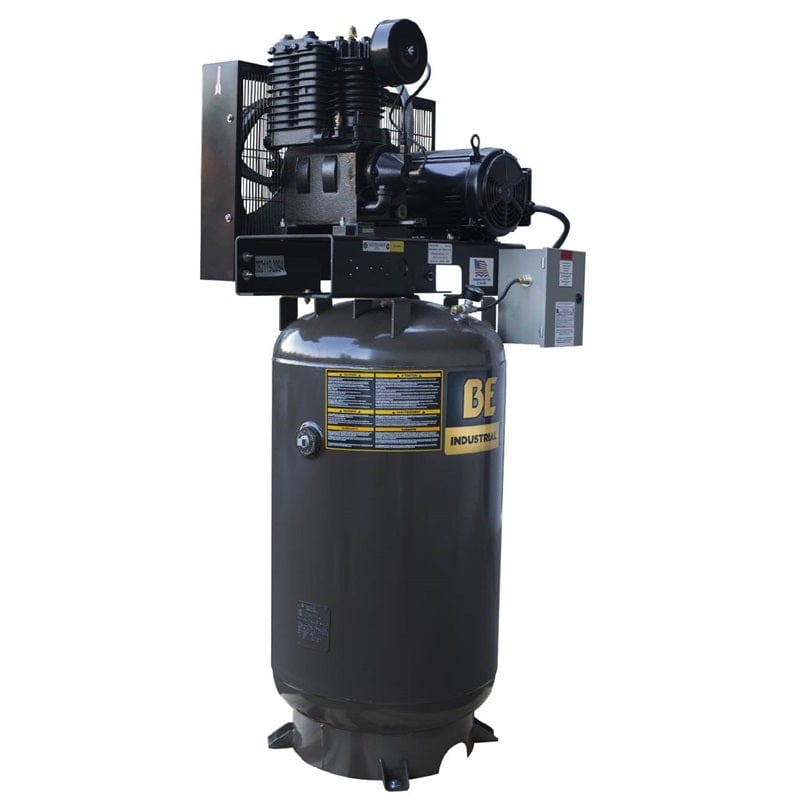

BE Air Compressor AC7580B 80 Gal, Magnetic Starter Mounted and Connected
BE Air Compressor AC7580B 80 Gal
Belt drive system keeps the pump RPM low and running cooler to extend its performance and life span. Heavy-duty, two-stage splash lubricated pump with cast iron cylinders, accessible valves, and bearings on both end of the crank shaft to maximize longevity. Centrifugal unloading further improves pump cooling and life span. Magnetic starter mounted and connected. Heavy-duty 80-gallon tank has twist drain valve and stable platform to bolt to the ground.
• 7.5 HP motor is set up for 208-230 volt operation. Draws 32 amps at 230 volts. • Belt drive system keeps the pump RPM low and running cooler to extend its performance and life span. • Heavy-duty, two-stage splash lubricated pump with cast iron cylinders, accessible valves, and bearings on both end of the crank shaft to maximize longevity. • Centrifugal unloading further improves pump cooling and life span. • Magnetic starter mounted and connected. • Heavy-duty 80-gallon tank has twist drain valve and stable platform to bolt to the ground.
- TYPE: LESSON
- HORSE POWER: 7.5
- AMPS: 32 AT 230 VOLTS
- VOLTS: 208-230
- DUTY CYCLE: 100%
- RPM 3450
- TYPE: RECIPROCATING
- PART NUMBER: 42.005.018
- MAX PSI 175
- STAGE: TWO
- OIL TYPE: 30W NON-DETERGENT
- DUTY CYCLE: 80%
- RPM: 700
- AIR FILTER: 1” NPT PORT SIZE
- PART NUMBER: 42.005.052
- TANK SIZE: 80 GALLONS
- MATERIAL: POWDER COATED STEEL
- TANK DRAIN: TWIST VALVE
- LxWxH: 45" x 36" x 86"
- WEIGHT: 480 LBS
