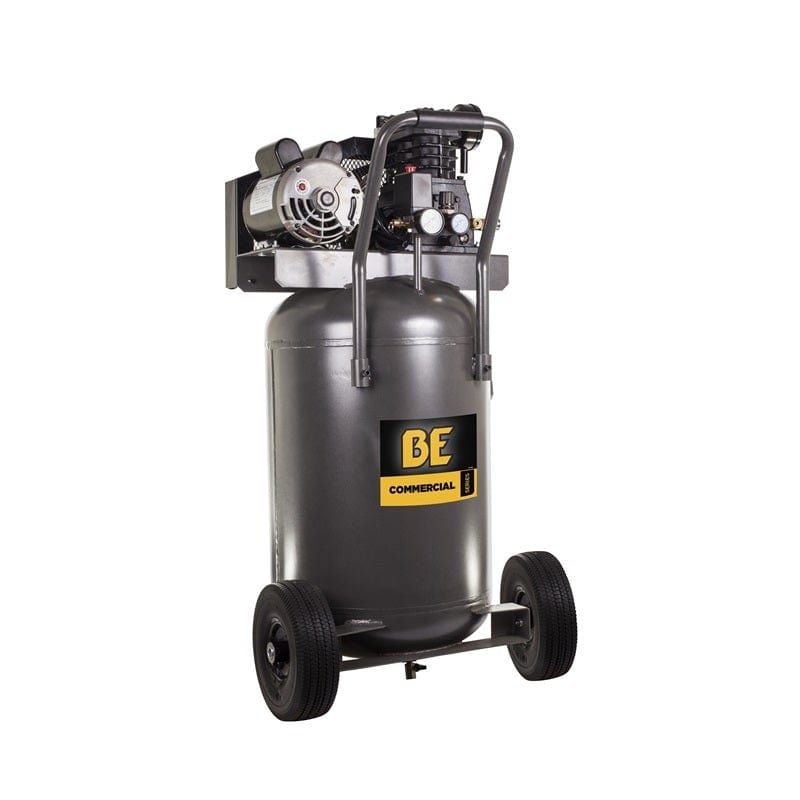

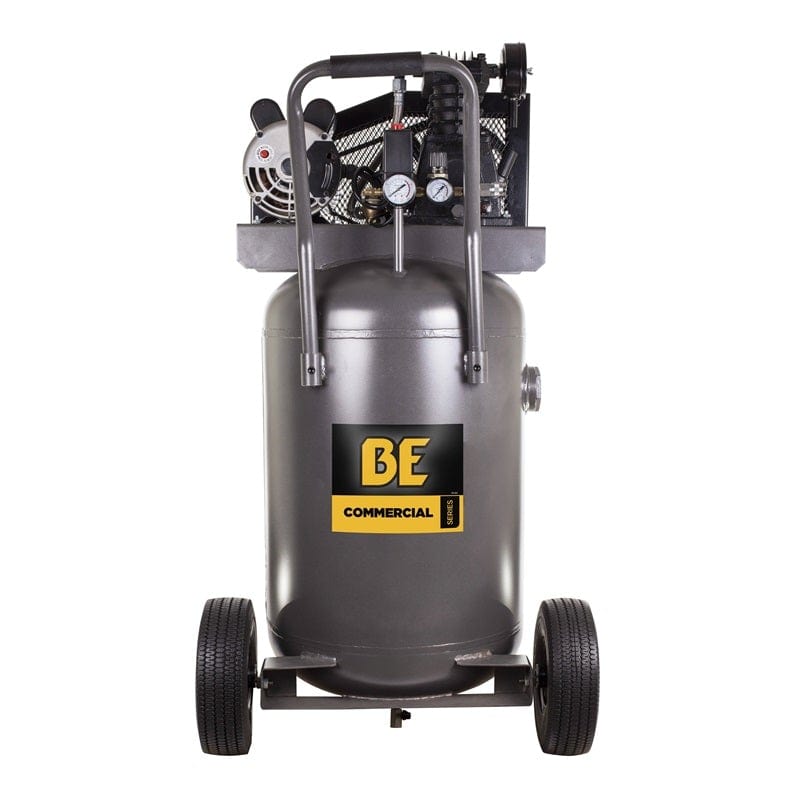

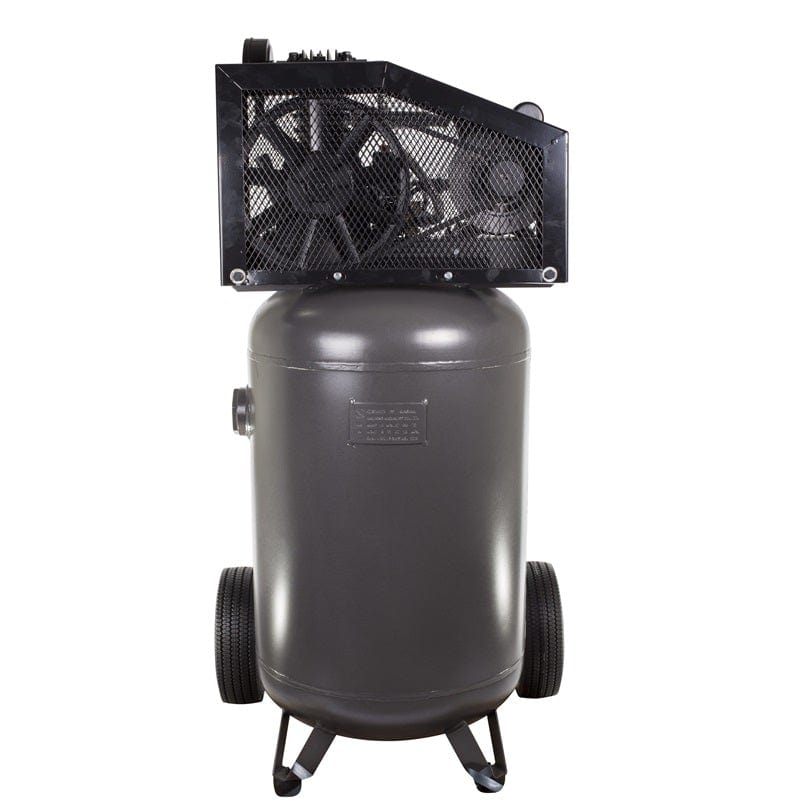

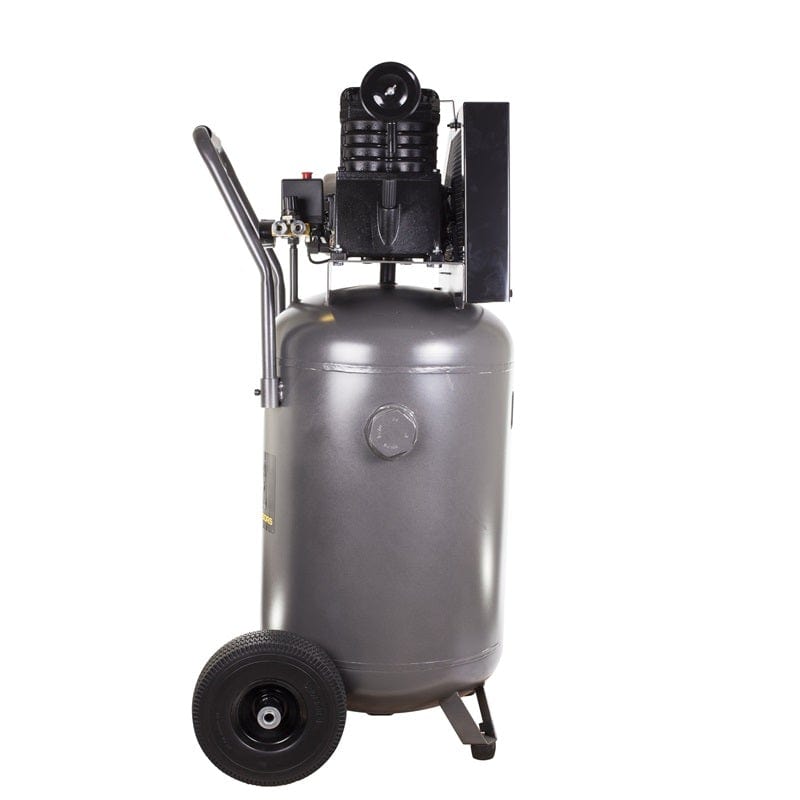

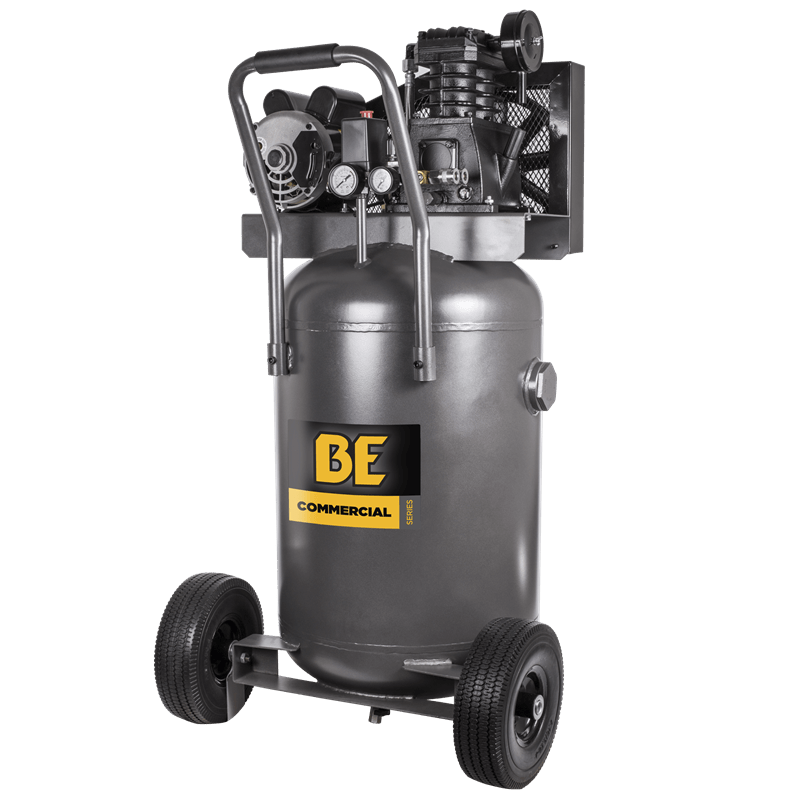

BE 5.6 Cfm @ 90 Psi - 30 Gallon Portable Electric Air Compressor AC3230B
BE 5.6 Cfm @ 90 Psi - 30 Gallon Portable Electric Air Compressor
Belt drive system keeps the pump RPM low and running cooler to extend its performance and life span. Heavy-duty, splash lubricated pump with cast iron cylinders and aluminum body for optimum durability and performance. Pressure switch is set up to cut-in at 95 PSI then cut-off at 125 PSI. Includes regulator to adjust line pressure where it is needed, and industrial type coupler, and air gauges. Vertical 30 gallon tank takes minimal floor space and has flat free tires making it easy to move. Wheel and handle kit is included to make it easier to move where it is needed.
• Dual Voltage 3.0 HP motor is set up for 120v operation, but can be switched to 240v if needed. • Belt drive system keeps the pump RPM low and running cooler to extend its performance and life span. • Heavy-duty, splash lubricated pump with cast iron cylinders and aluminum body for optimum durability and performance. • Pressure switch is set up to cut-in at 95 PSI then cut-off at 125 PSI. • Includes regulator to adjust line pressure where it is needed, industrial type couplers, and air gauges. • Vertical 30-gallon tank takes minimal floor space and has flat free tires making it easy to move. • Wheel and handle kit is included to make it easier to move where it is needed.
- PART NUMBER: 42.004.510
- HORSE POWER: 3.0
- AMPS: 15 / 7.5
- VOLTS: 120 / 240
- POWER CORD: 6’
- DUTY CYCLE: 100%
- RPM 3450
- TANK SIZE: 30 GALLONS
- MATERIAL: POWDER COATED STEEL
- FITTINGS: 2 INDUSTRIAL COUPLERS
- TANK DRAIN: BALL VALVE
- WHEELS: 8” FLAT FREE
- TYPE: RECIPROCATING
- PART NUMBER: 42.004.051
- MAX PSI 125
- STAGE: SINGLE
- OIL TYPE: 30W NON-DETERGENT
- DUTY CYCLE: 80%
- RPM: 680
- AIR FILTER: 3/8” NPT PORT SIZE
- PART NUMBER: 42.004.524
- LxWxH: 25" x 25" x 56"
- WEIGHT: 190 LBS
