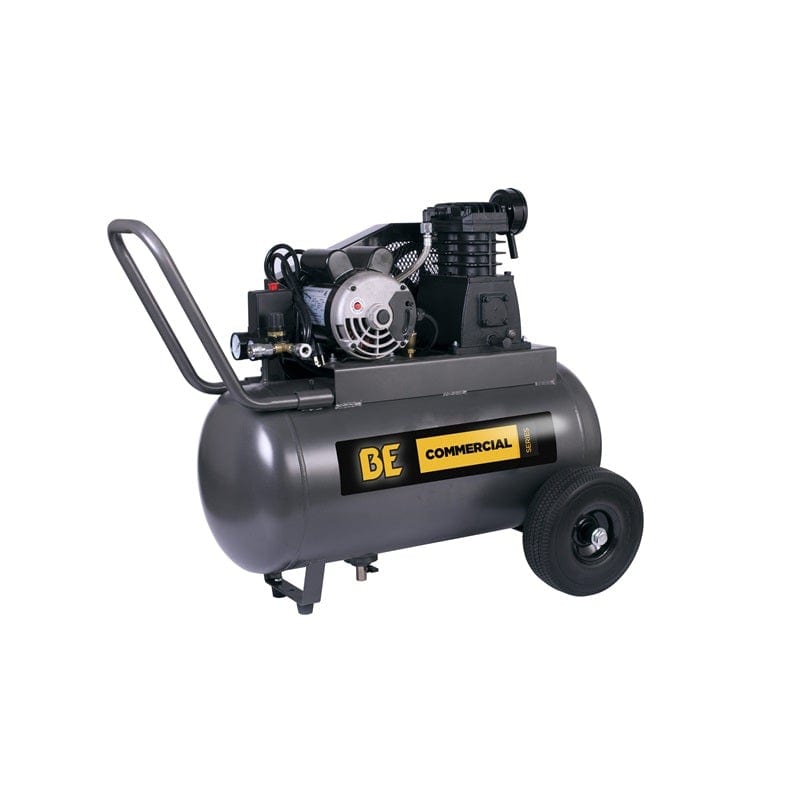

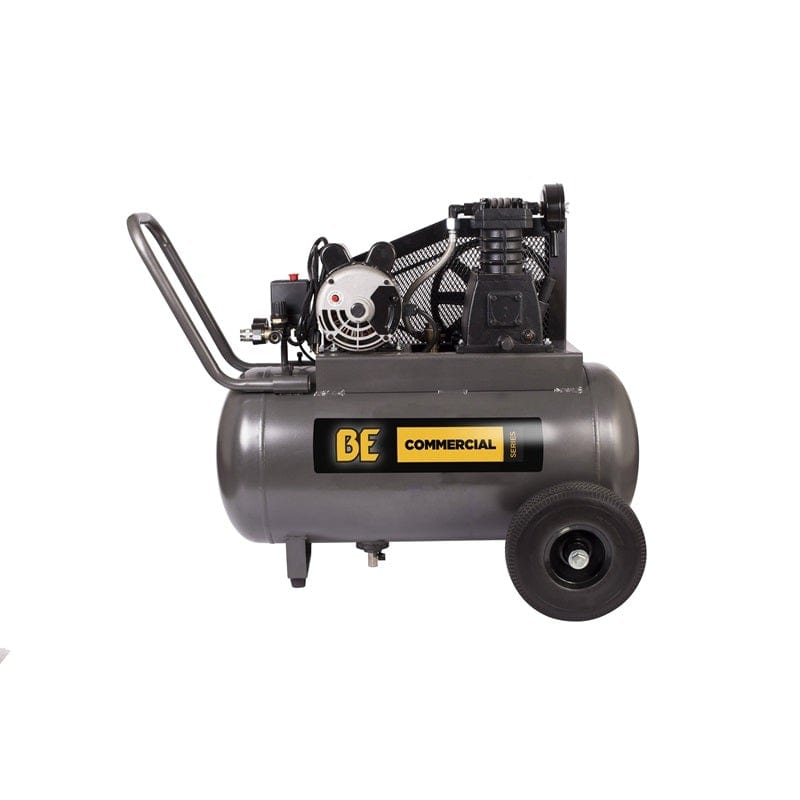

BE 5.7 Cfm @ 90 Psi - 20 Gallon Portable Electric Air Compressor AC3220B
BE 5.7 Cfm @ 90 Psi - 20 Gallon Portable Electric Air Compressor
Belt drive system keeps the pump RPM low and running cooler to extend its performance and life span. Heavy-duty, splash lubricated pump with cast iron cylinders and aluminum body for optimum durability and performance. Pressure switch is set up to cut-in at 95 PSI then cut-off at 125 PSI. Includes regulator to adjust line pressure where it is needed, and industrial type coupler, and air gauges. Low profile horizontal 20 gallon tank is a stable platform and has flat free tires making it easy to move. Wheel and handle kit is included to make it easier to move where it is needed.
• Dual Voltage 3.0 HP motor is set up for 120v operation, but can be switched to 240v if needed. • Belt drive system keeps the pump RPM low and running cooler to extend its performance and life span. • Heavy-duty, splash lubricated pump with cast iron cylinders and aluminum body for optimum durability and performance. • Pressure switch is set up to cut-in at 95 PSI then cut-off at 125 PSI. • Includes regulator to adjust line pressure where it is needed, industrial type couplers, and air gauges. • Low profile horizontal 20-gallon tank is a stable platform and has flat free tires making it easy to move. • Wheel and handle kit is included to make it easier to move where it is needed.
- PART NUMBER: 42.004.510
- HORSE POWER: 3.0
- AMPS: 15 / 7.5
- VOLTS: 120 / 240
- POWER CORD: 6’
- DUTY CYCLE: 100%
- RPM 3450
- TANK SIZE: 20 GALLONS
- MATERIAL: POWDER COATED STEEL
- FITTINGS: 2 INDUSTRIAL COUPLERS
- TANK DRAIN: BALL VALVE
- WHEELS: 8” FLAT FREE
- TYPE: RECIPROCATING
- PART NUMBER: 42.004.051
- MAX PSI 125
- STAGE: SINGLE
- OIL TYPE: 30W NON-DETERGENT
- DUTY CYCLE: 80%
- RPM: 680
- AIR FILTER: 3/8” NPT PORT SIZE
- PART NUMBER: 42.004.524
- LxWxH: 27" x 18" x 38"
- WEIGHT: 170 LBS
